ANG200P-A Dual-channel Visual Throwing Device Capture Net Launcher(1)

Product Overview The ANG200P-A is a specialized drone-mounted net gun payload designed for the DJI Matrice 400 platform. It can launch two separate 9-square-meter capture nets mid-air to secure stationary or moving targets with an effective range of 15 meters. Integrating seamlessly via DJI PSDK, its operational control range matches the drone’s remote controller. This payload plays a critical role in law enforcement operations, counter-UAS (drone interception), and wildlife rescue missions.

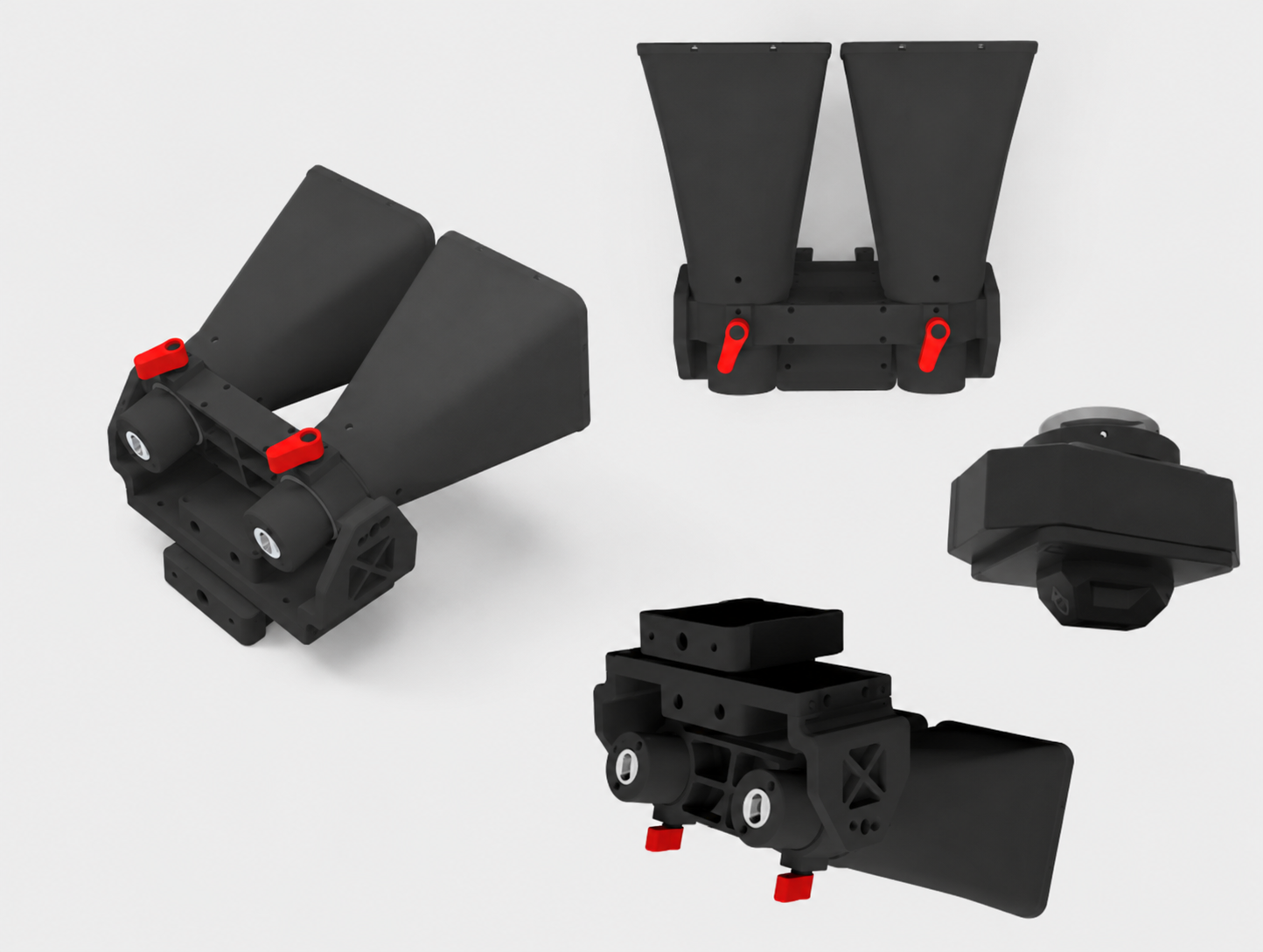

The system features a modular, split design consisting of one video acquisition module and two net launchers. The video module mounts directly to the gimbal interface, streaming synchronized, same-angle targeting footage back to the remote controller. The net launchers install under the drone’s belly, connecting via a Type-C cable to share the primary PSDK interface with the video module.

Key Features

• Secure Installation: Features a reinforced metal mounting bracket engineered to withstand high launch recoil.

• Specialized Accessories: Equipped with multiple reusable 3m × 3m capture nets, optimized for multiple deployments.

• Dual Safeguards: Enhanced operational safety via integrated software and hardware failsafes.

• Robust & Reliable: Built with a full-metal CNC-machined structure for durability in harsh and complex environments.

• Modular Split Design: Effectively prevents the impact or shock of net deployment from disturbing the gimbal camera.

• Target Visualization: In-line camera tracking matches the exact angle of the net gun for effortless aiming and maximum precision.

Application Scenarios

• Law Enforcement & Tactical Capture

• Counter-UAS / Drone Interception

• Wildlife Protection & Rescue

Technical Specifications

• Product Model: ANG200P-A

• Dimensions: 151 × 155 × 134 mm

• Product Weight: 1116 g

• Interface Type: EPORT V2.0

• Control Software: DJI Pilot 2

• System Power: 15 W

• Operating Temperature: -20°C to 60°C

• Launch Channels: 2

• Control Range: Identical to the drone’s maximum communication range

• Safety Mechanism: Independent safety unlock button

• Mounting Method: Under-belly snap-on quick release

• Effective Range: 10–15 m

• Video Feed Transmission: 1080P @ 30fps

• Compatible Drones: DJI Matrice 350 / Matrice 400
