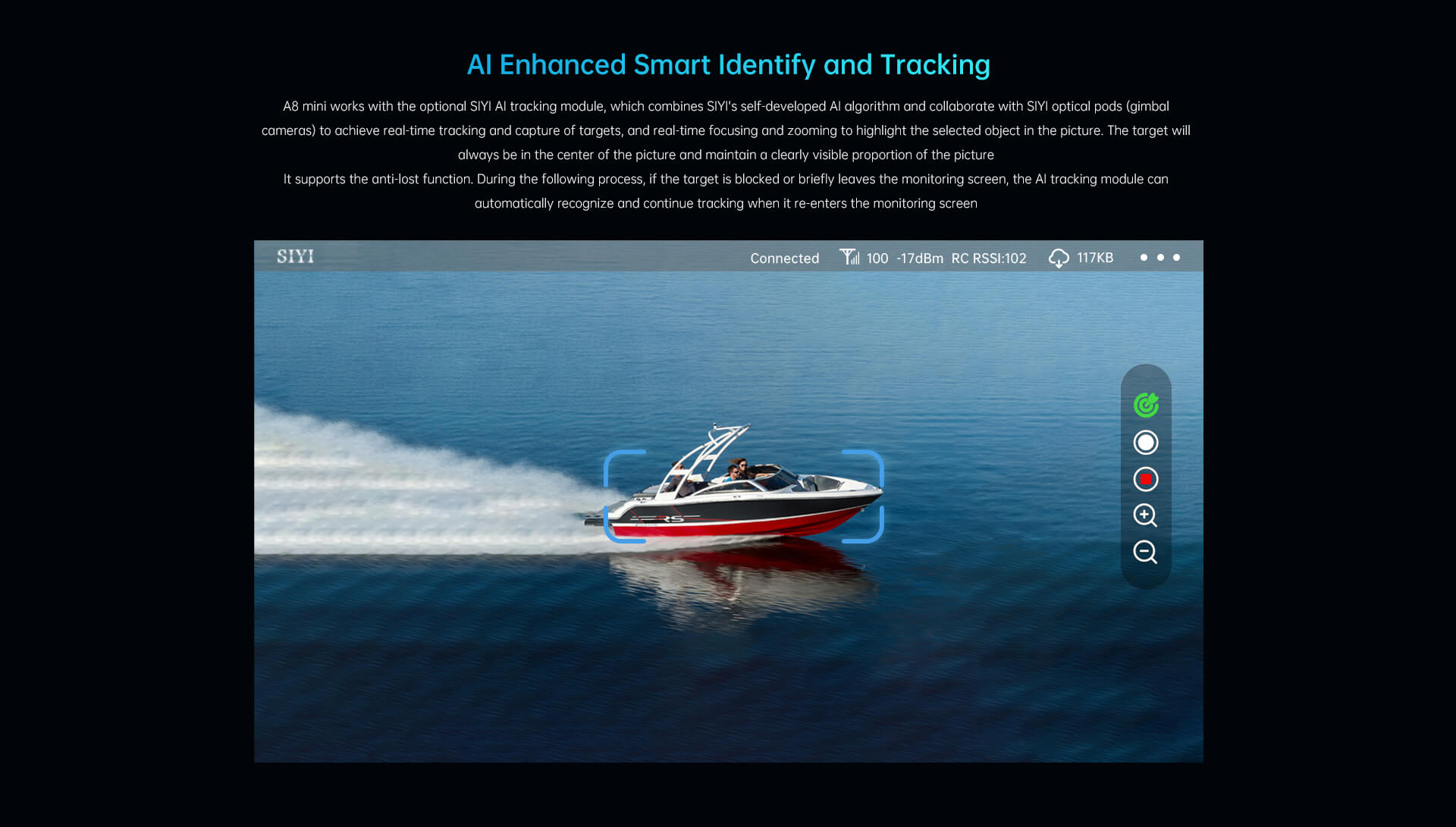

Micro 3-Axis Gimbal | 4K UHD Imaging | AI Target Tracking

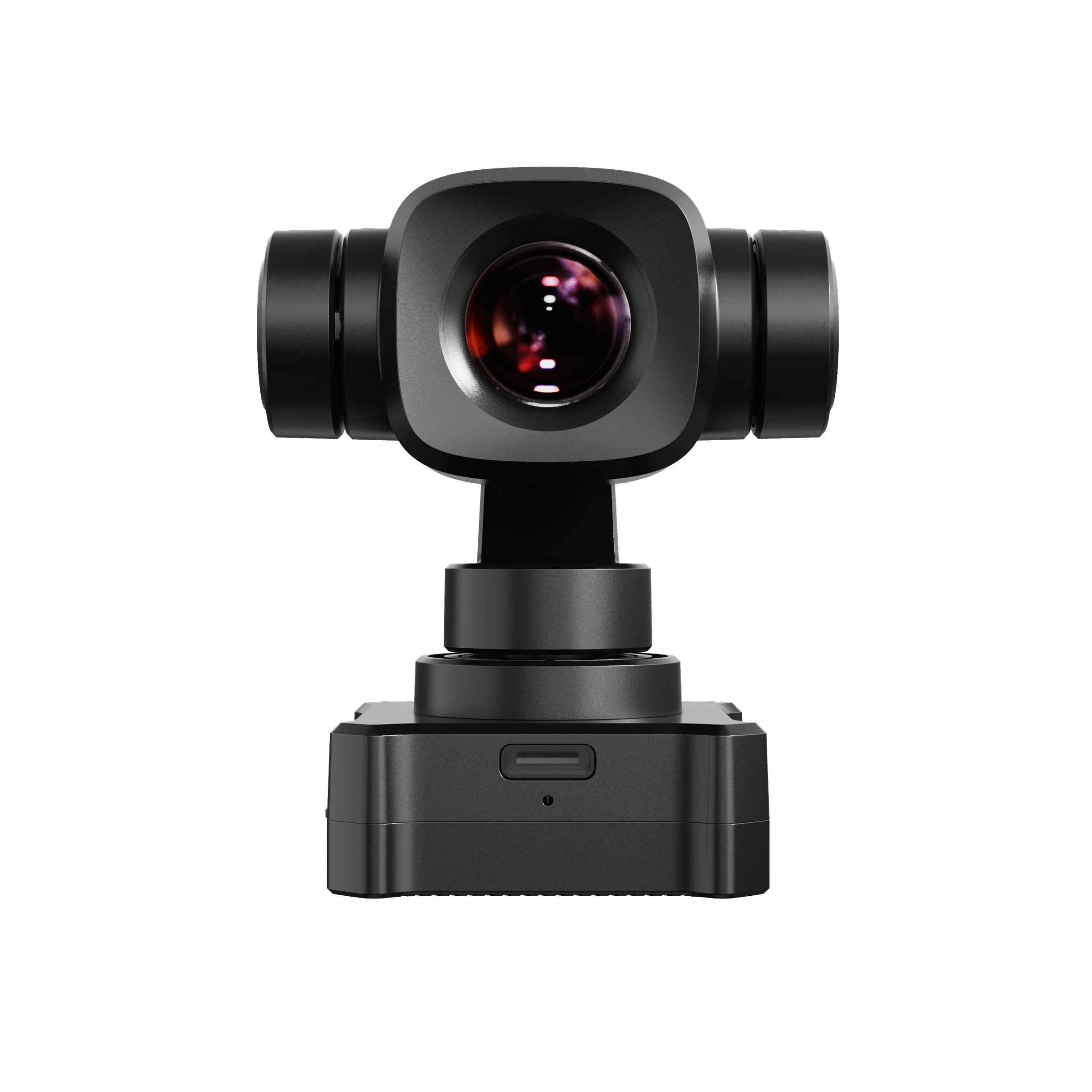

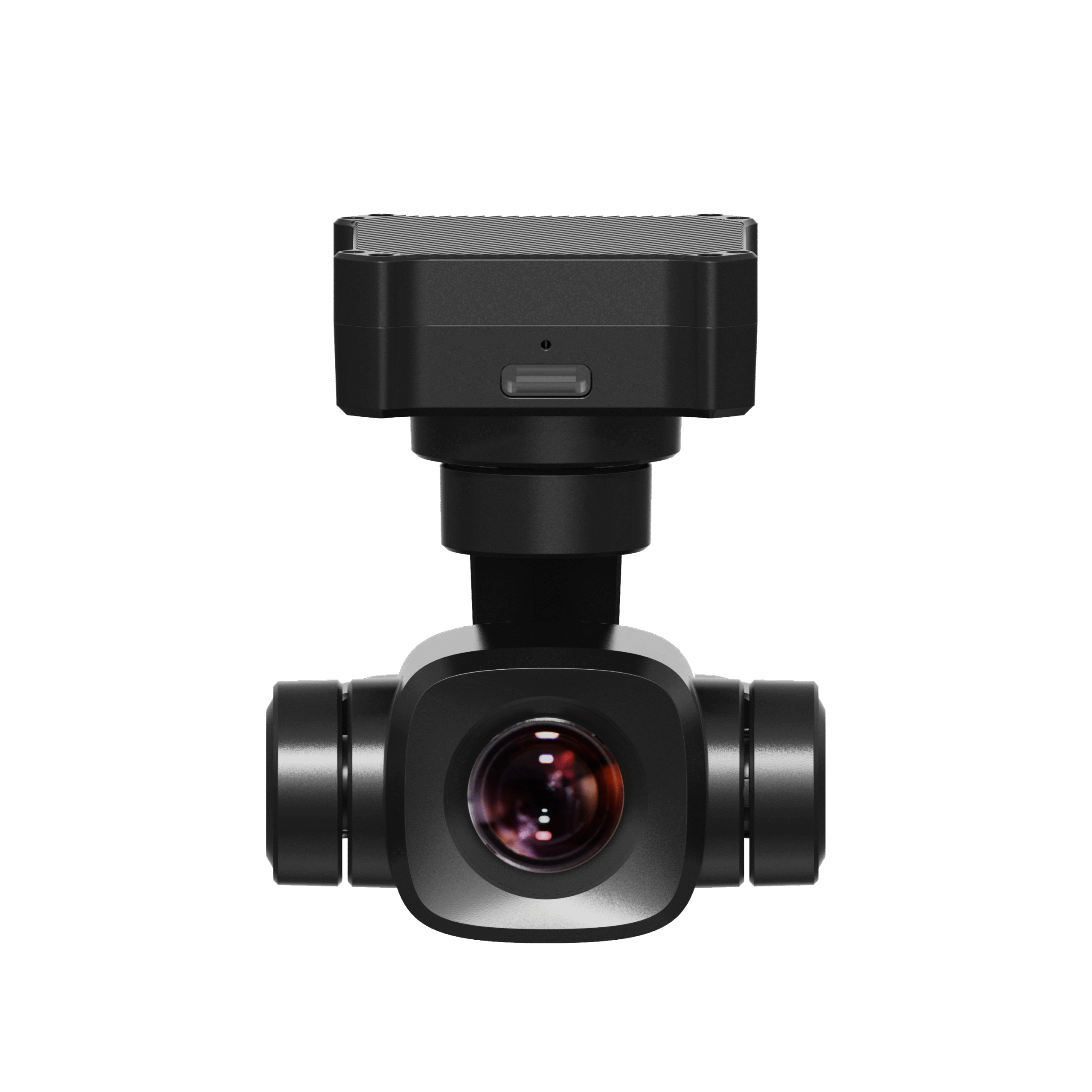

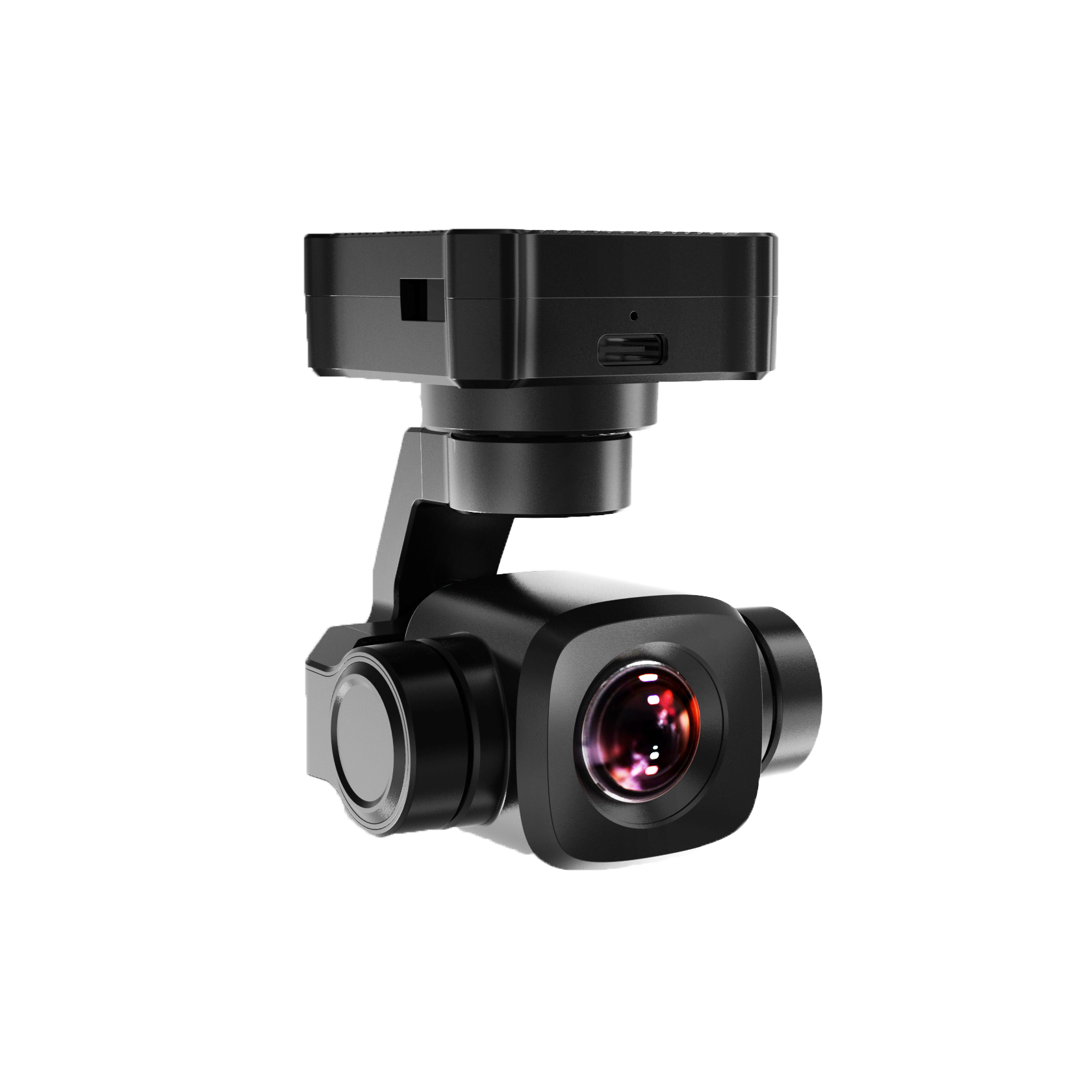

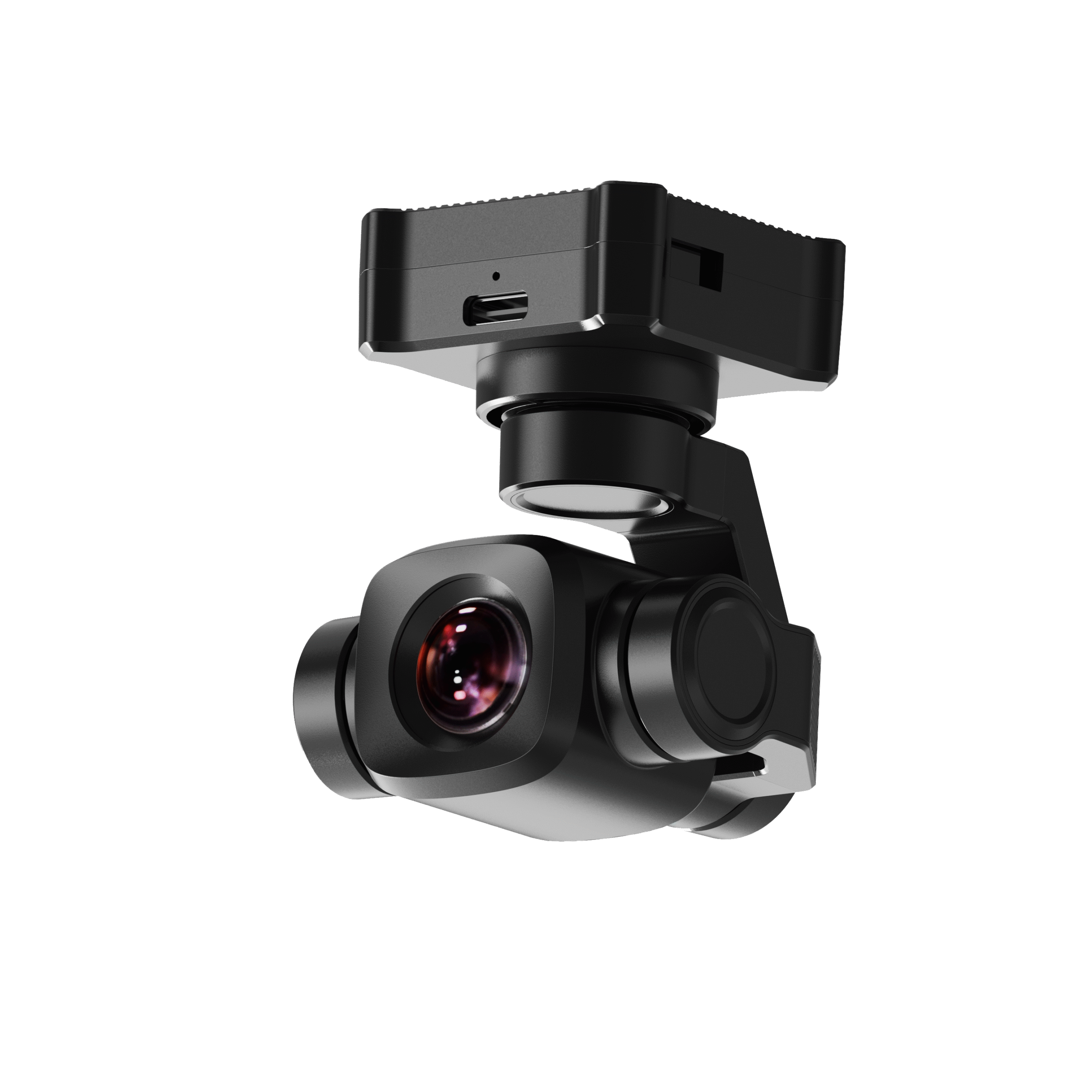

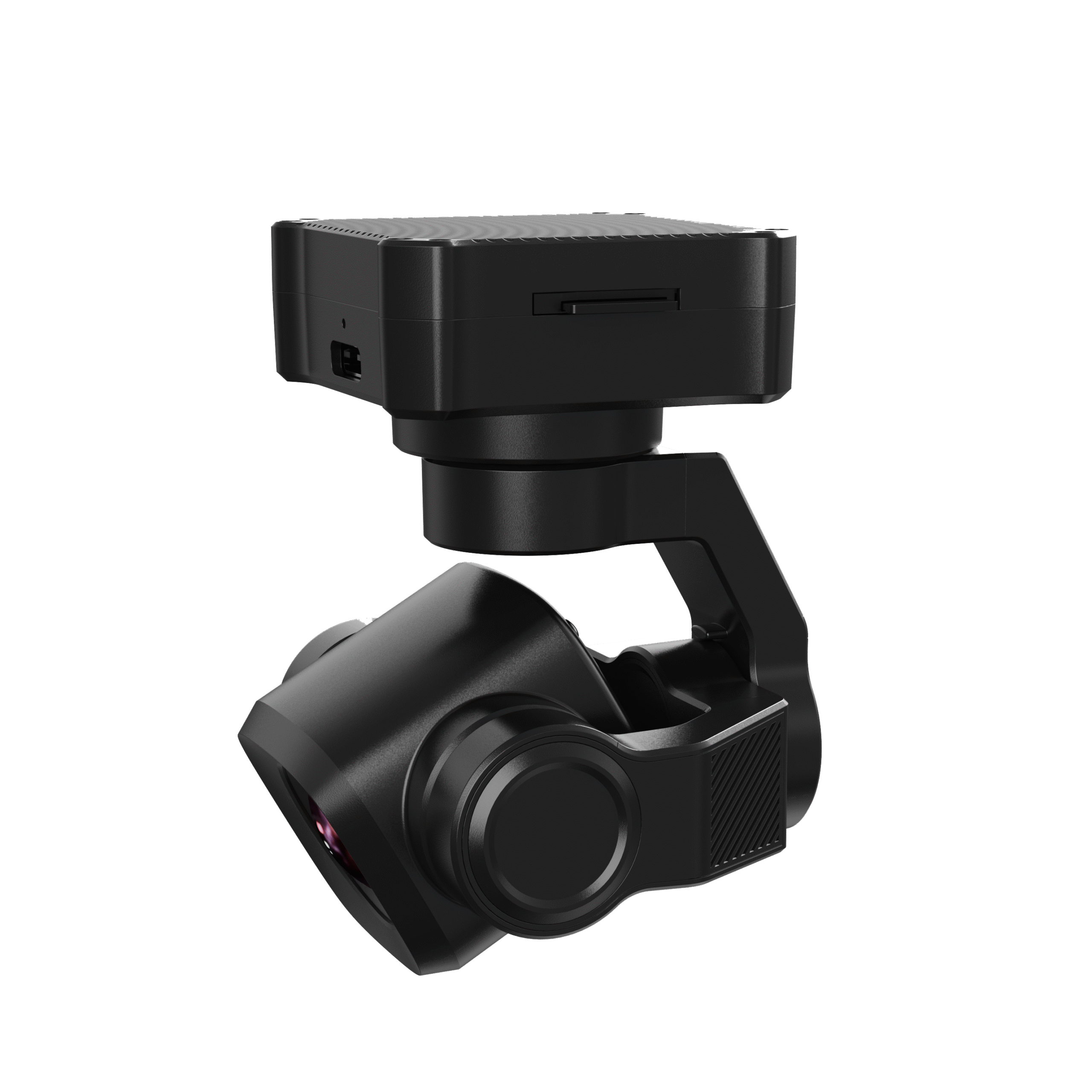

The C-A8 is a high-precision 3-axis gimbal camera designed for professional UAV applications such as inspection, mapping, and public safety. Featuring a Sony 1/1.7" 8MP sensor, it delivers stunning 4K video with exceptional clarity and color accuracy. The advanced stabilization system ensures ultra-smooth footage with an angular vibration range of only ±0.01°. Weighing just 95 g, the compact design supports multiple control and video output interfaces (S.Bus, UART, Ethernet, Micro-HDMI), offering seamless integration with various UAV platforms. Built to perform in demanding environments, the C-A8 combines powerful imaging performance with reliable, efficient operation.
Key Features:
Ultra-Stable 3-Axis Gimbal – With a precision of ±0.01°, it delivers perfectly smooth and shake-free footage, even during complex aerial maneuvers.

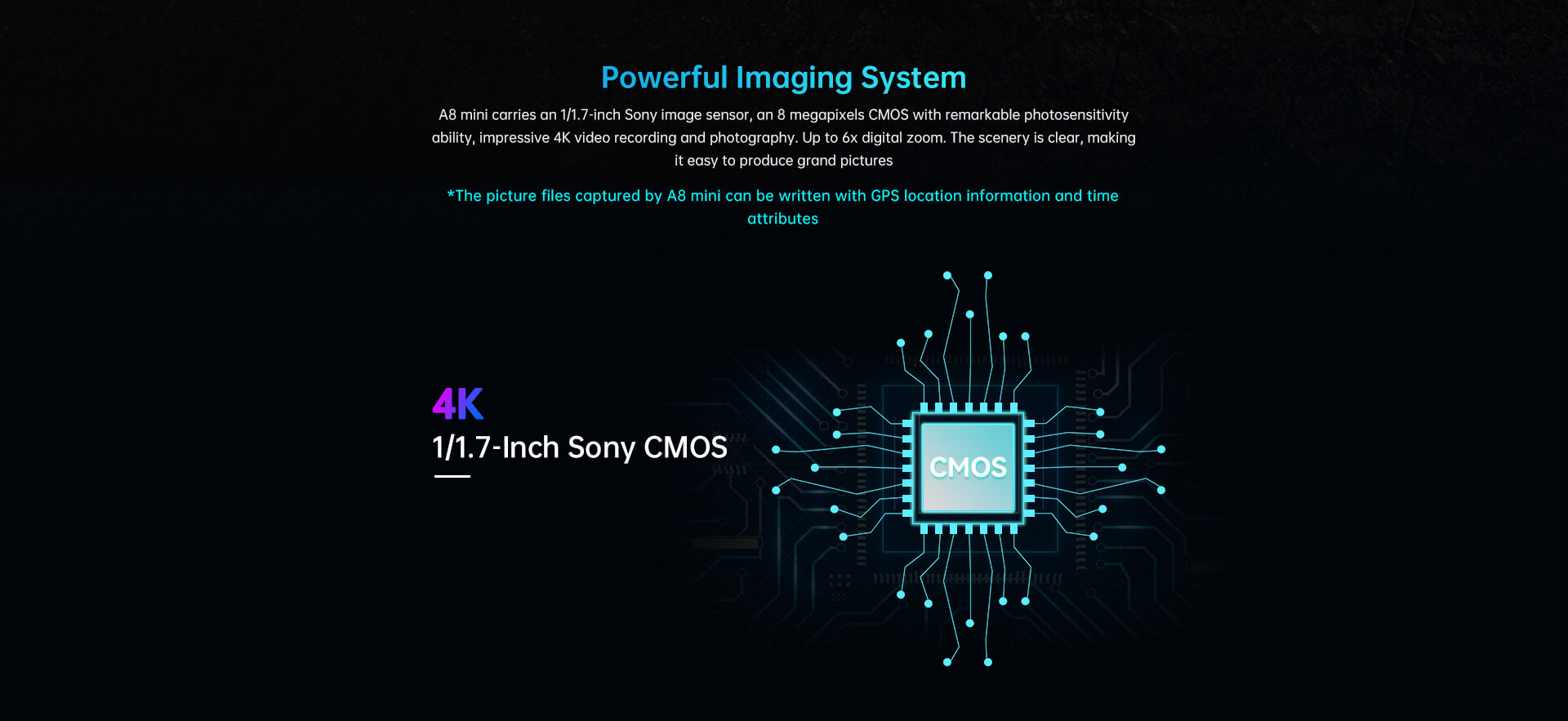

Crystal-Clear 4K Imaging – Powered by a Sony 1/1.7" 8MP sensor and F2.8 lens, capturing every detail in vibrant 4K clarity.
Compact & Lightweight Design – Only 95 g with a 55×55×70 mm body, ideal for drones requiring balance between performance and endurance.
Seamless Integration – Supports multiple control protocols (S.Bus / UART / Ethernet UDP-TCP) and outputs (Ethernet / CVBS / Micro-HDMI) for flexible system integration.
Mini Gimbal, Maximum Precision | AI Tracking | 4K Vision Redefined
Reliable in Every Mission – IP4X-rated protection and –10°C to 50°C operating range ensure dependable performance in harsh environments.
Smart Power Efficiency – Works within 11–25.2 V voltage range with an average power draw of only 5 W, maximizing flight time and reliability.
Ready for Professional Applications – Perfect for inspection, mapping, public safety, and search & rescue missions requiring stable, high-resolution aerial visuals.
| color | black, crimson, cyan, green |
|---|
