40x Hybrid Zoom | 4K Imaging | Total Darkness Clarity

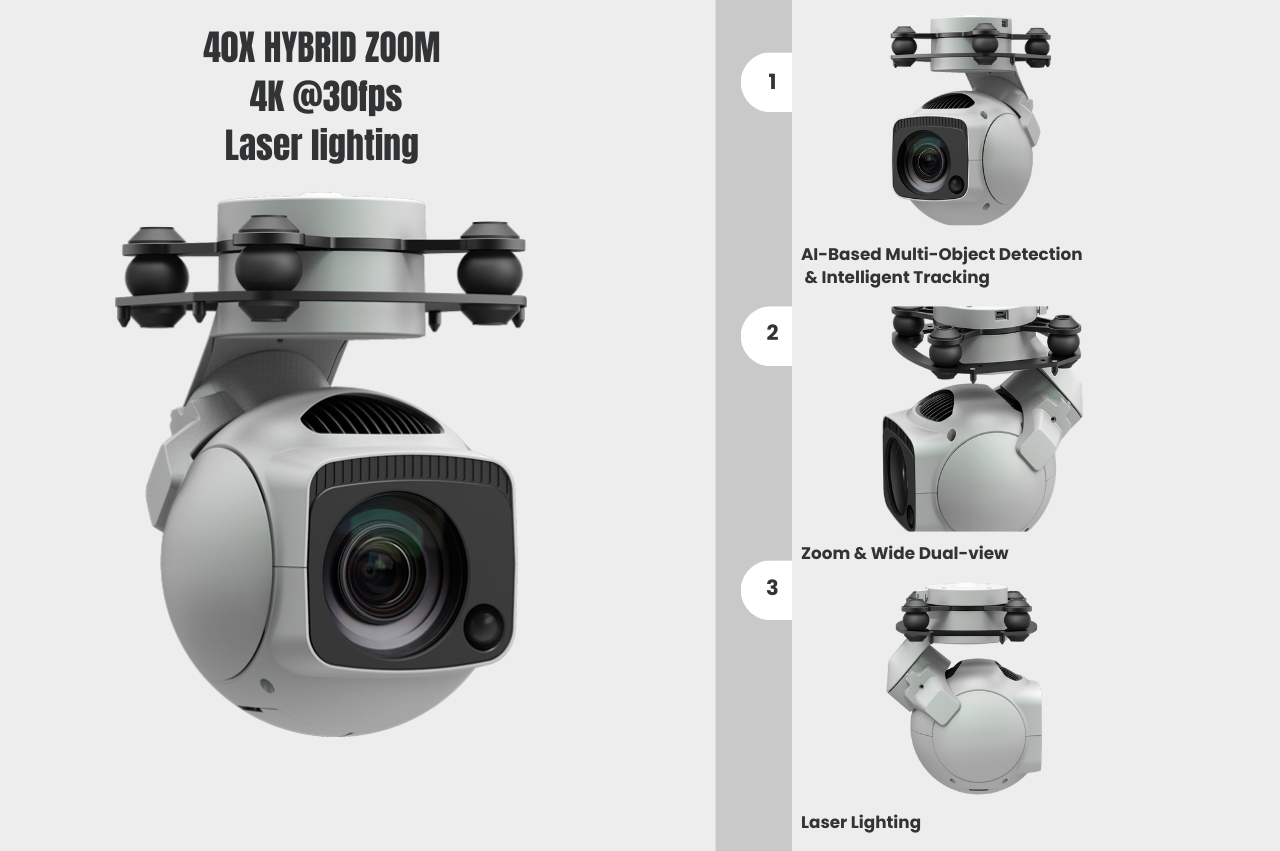

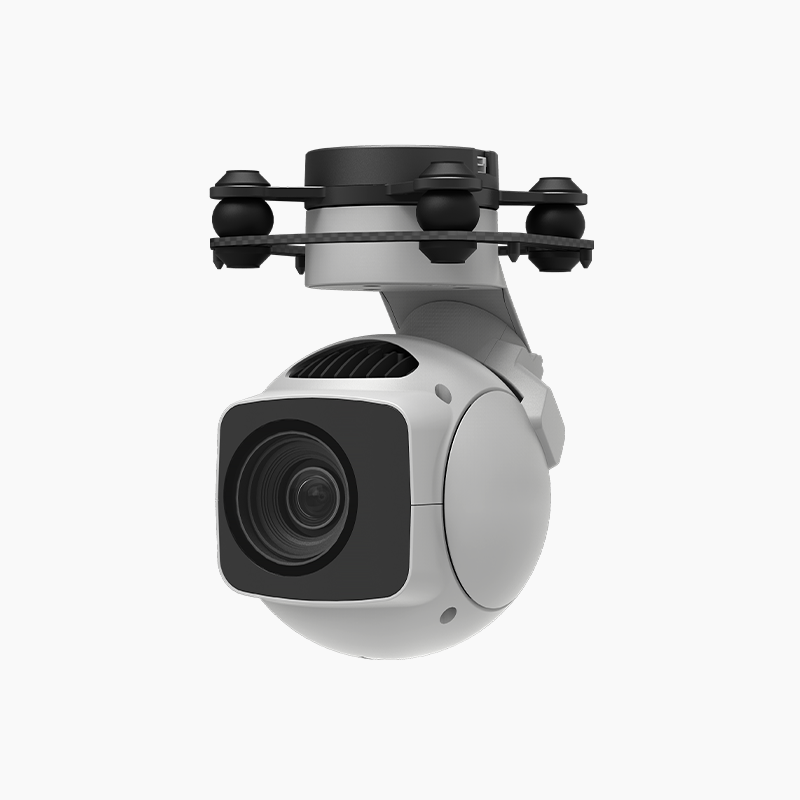

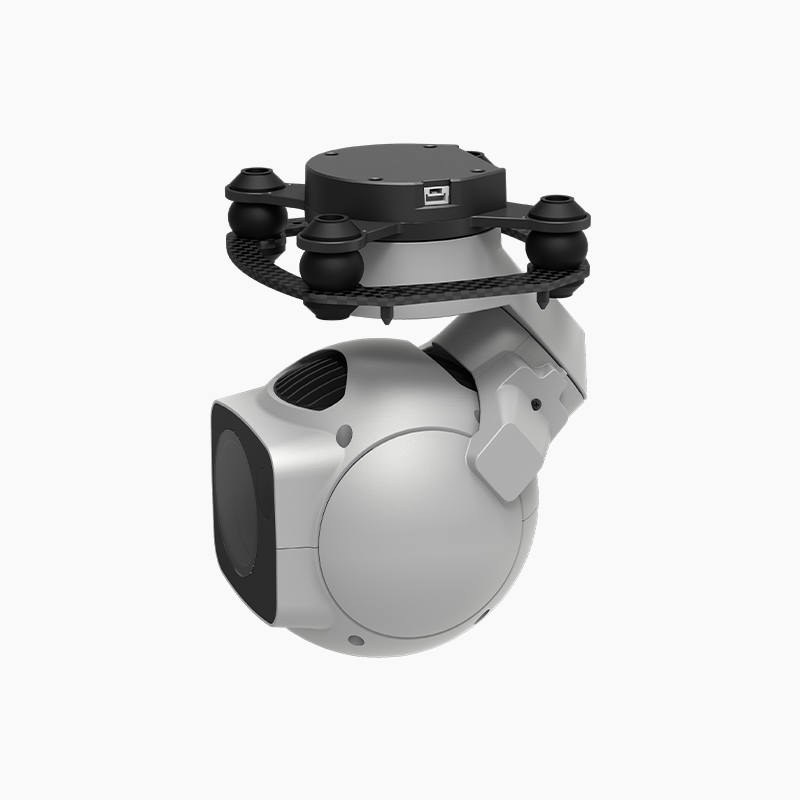

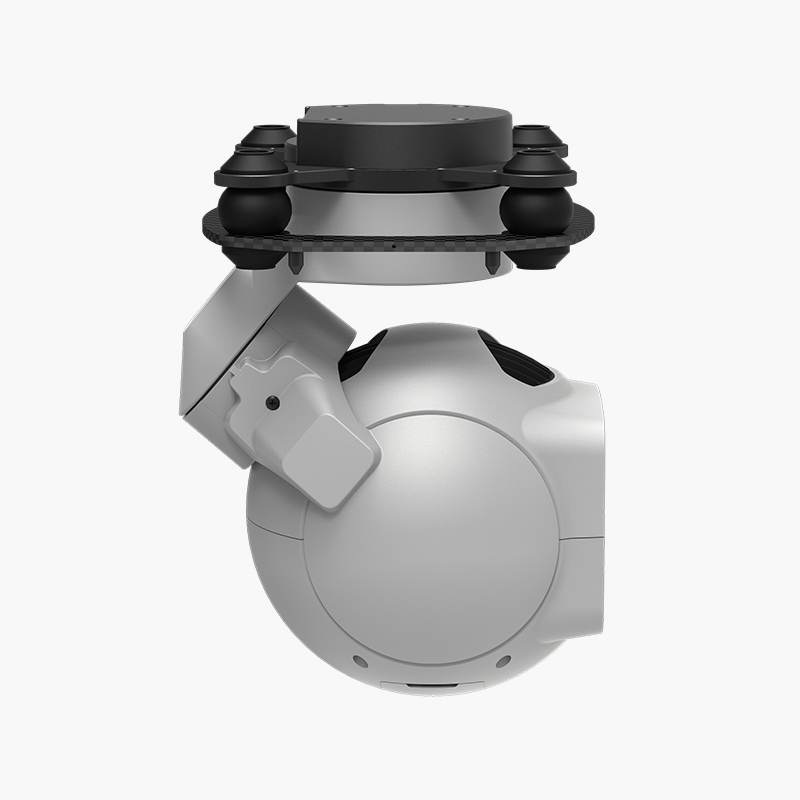

The C-D80Pro is a dual-view gimbal pod featuring an 8.29M pixels 40x zoom camera. It allows quick zooming after target recognition, supports target tracking, and delivers clear imaging even in complete darkness with laser lighting.
Key Features:
40x Hybrid Zoom Camera (8.29M pixels):Provides 4K@30fps video and 3840×2160 image resolution for clear, detailed observation.
Laser Lighting Module:Ensures clear imaging even in complete darkness.
Auto Target Tracking:Continuously tracks the selected target on-screen for reliable monitoring.

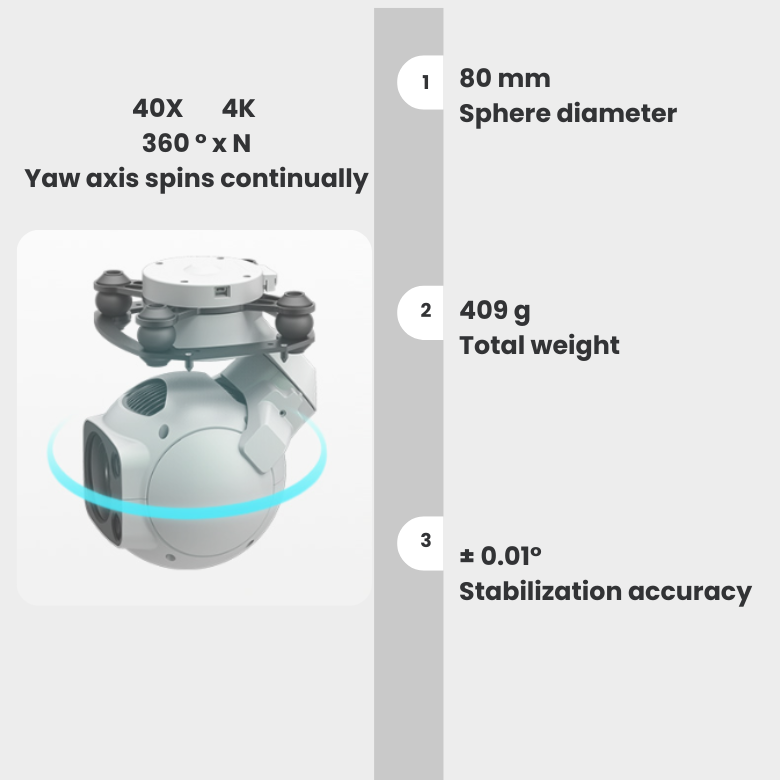

Compact Low-Profile Spherical Design:3-axis nonorthogonal gimbal minimizes gyration radius and wind resistance while allowing continuous yaw rotation.
Flexible Control & Protocol Support:Supports network, UART, S.BUS, private protocol, MAVLink, and ONVIF integration via GCU.
Laser Lighting | Dual-Protocol Support | Night Vision Ready
High-Precision Stabilization (±0.01°):Dual-IMU complementary algorithms with IMU temperature control and AHRS fusion ensure ultra-stable imaging.
Versatile Mounting:Tool-less installation on multiple carriers in both upward and downward orientations.
Dragonfly & Customized QGC Software Integration:Real-time monitoring, pod control, and full functionality with open-source autopilot systems.
Smart Data & OSD Overlay:Supports EXIF geotagging, OSD overlay (latitude, longitude, altitude).
Wide Voltage Input (14~53 VDC):Compatible with diverse UAV power systems for flexible operations.
| Color | black, crimson, cyan, green |
|---|
