Key Parameters

• Detection Range: 0.1 ~ 40m

• Range Accuracy: 0.05m, precision measurement

• Point Cloud Imaging: Point clouds generated from 256 to 1500 points, delivering a 5-times performance improvement.

• Detection Angle: Azimuth 150 degrees, Elevation 30 degrees

Product Highlights

• 4D Height Measurement: Enables precise target height detection and vertical profiling.

• High Resolution: Capable of effectively distinguishing between two separate objects with a radial distance greater than 0.2 meters.

• Mastering Complex Scenarios: Highly capable of detecting small micro-objects on the road surface, such as traffic cones, manhole covers, and basketballs.

• 24/7 All-Weather Detection: Rated at IP67 protection, it provides real-time, all-weather defense capable of withstanding rain, snow, fog, haze, dust storms, and other harsh environments.

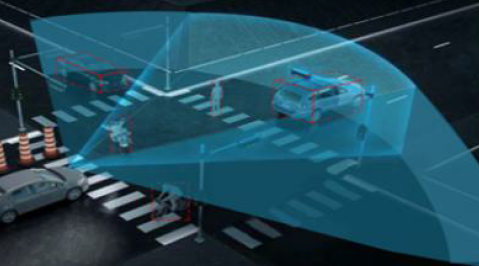

Application Scenarios

• Autopilot & Autonomous Systems: Designed for advanced driver assistance and unmanned systems, including autonomous robots, AGVs (Automated Guided Vehicles), and other driverless vehicle scenarios.

• Regulatory Compliance Support: Fully supports modern safety standards, including UN R151 (Blind Spot Detection), UN R158 (Reverse Detection), and UN R159 (Pedestrian and Cyclist Movement Monitoring).
