General Specifications

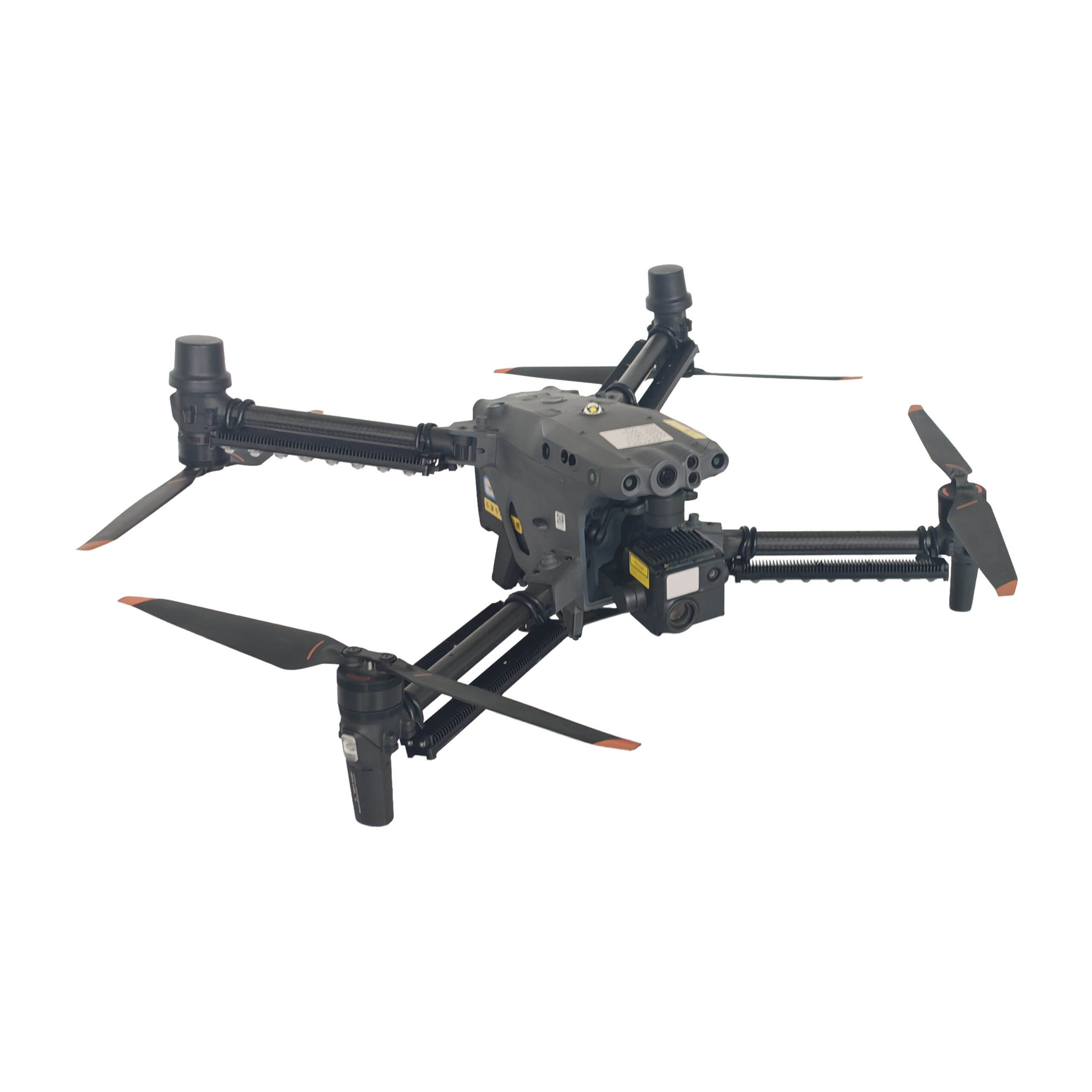

• Compatible Models: DJI Matrice 30, DJI Matrice 30T

• Supported Flight Altitude: 50m or 100m (with corresponding cable lengths of 55m or 110m)

• Flight Endurance: >24h (Continuous power supply via generator)

• Safety Features:

  • Contactless operation for high-voltage hazard isolation

  • Dynamic cable synchronization (auto-retraction tracks drone ascent/descent)

  • Failsafe auto-recycling function remains active upon generator stalling

  • Automatic high-voltage shutdown in the event of cable breakage, short circuit, or detachment

• Environmental Ratings:

  • Operating Temperature: -20°C to 45°C | Storage Temperature: -40°C to 65°C

  • Ingress Protection (IP) Class: Air Module: IP54 | Ground Module: IPX4

• Packaging:

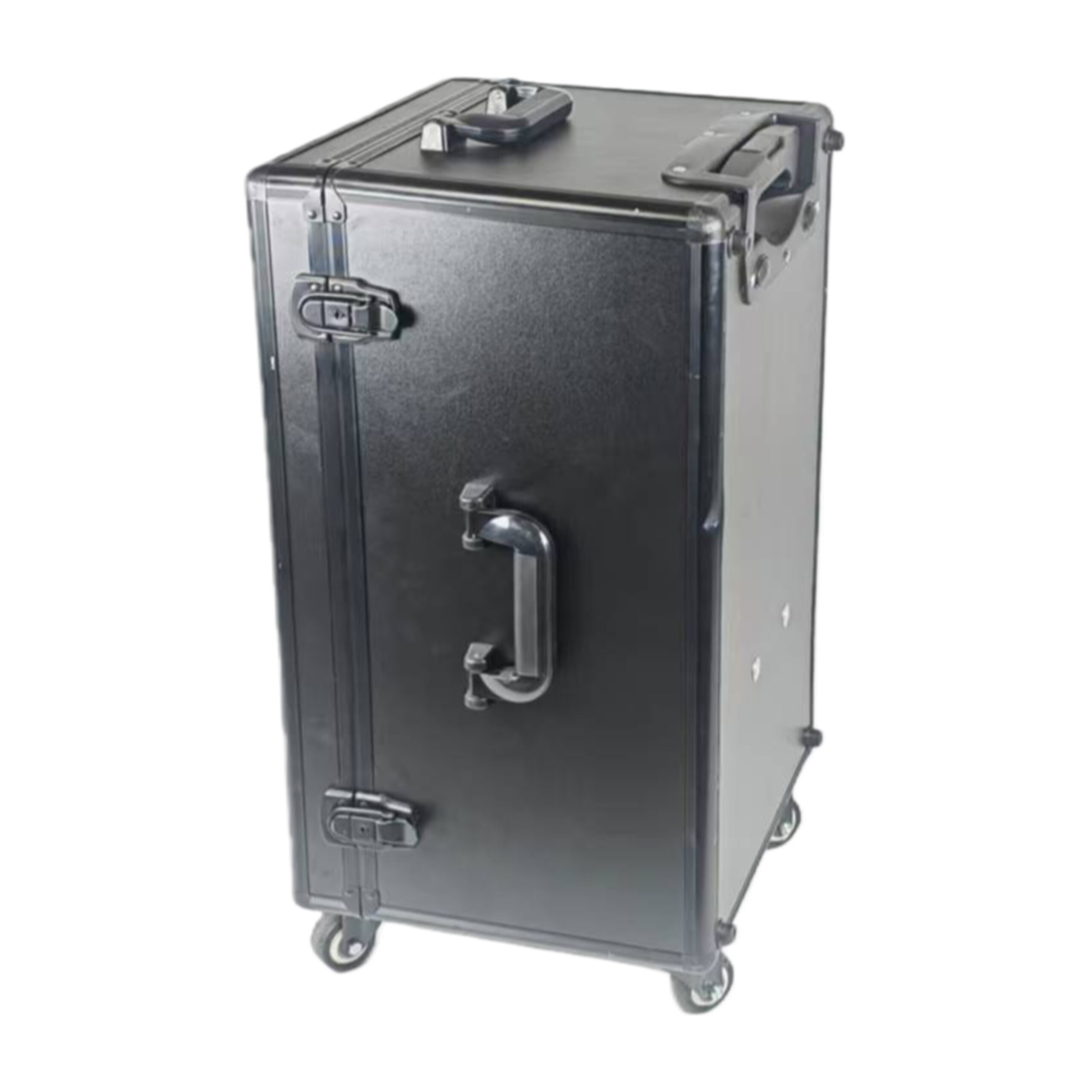

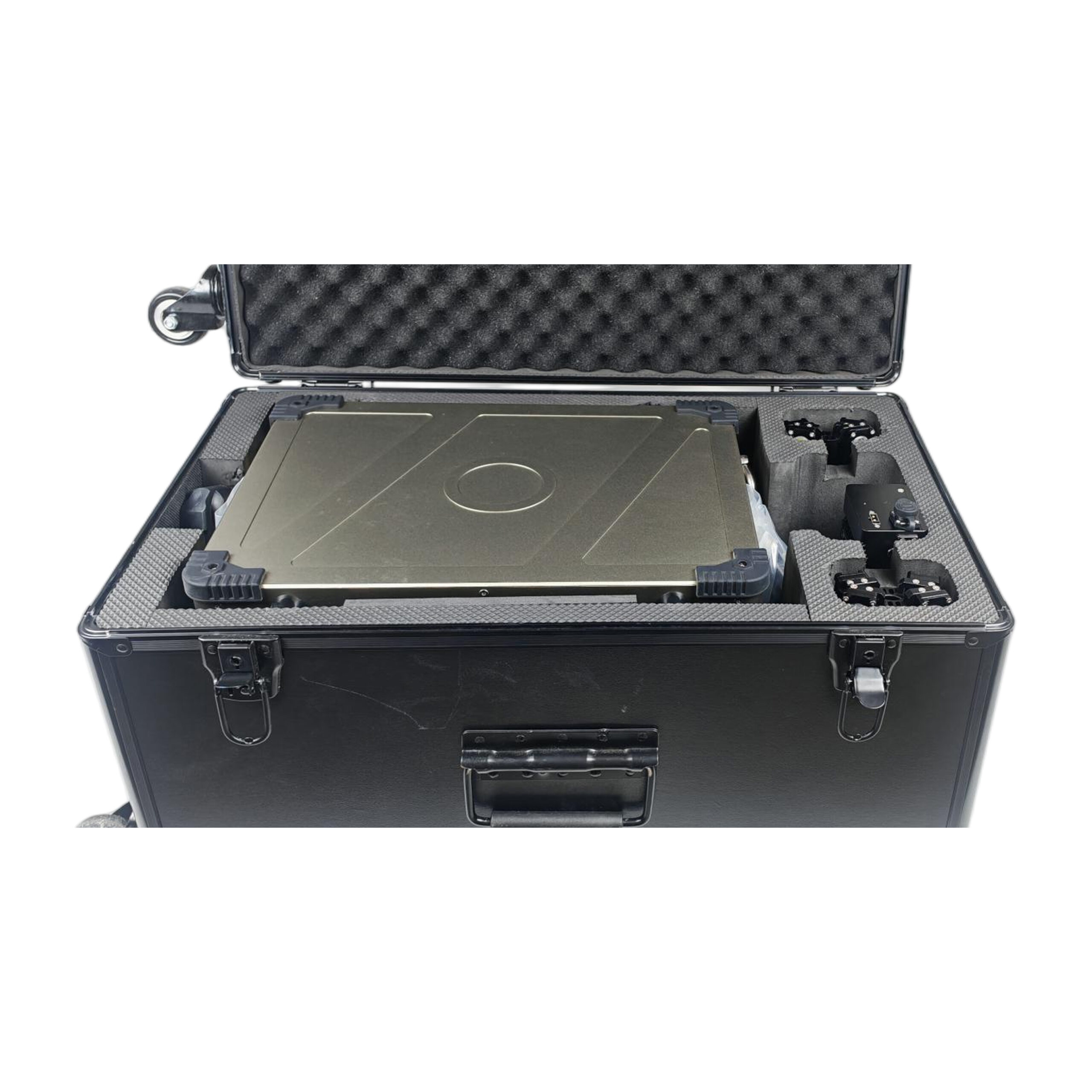

  • Heavy-duty trolley case (accommodates Ground Module, Air Module, and accessories)

  • Dimensions: D350 × W560 × H300 mm | Weight: 6.5 kg

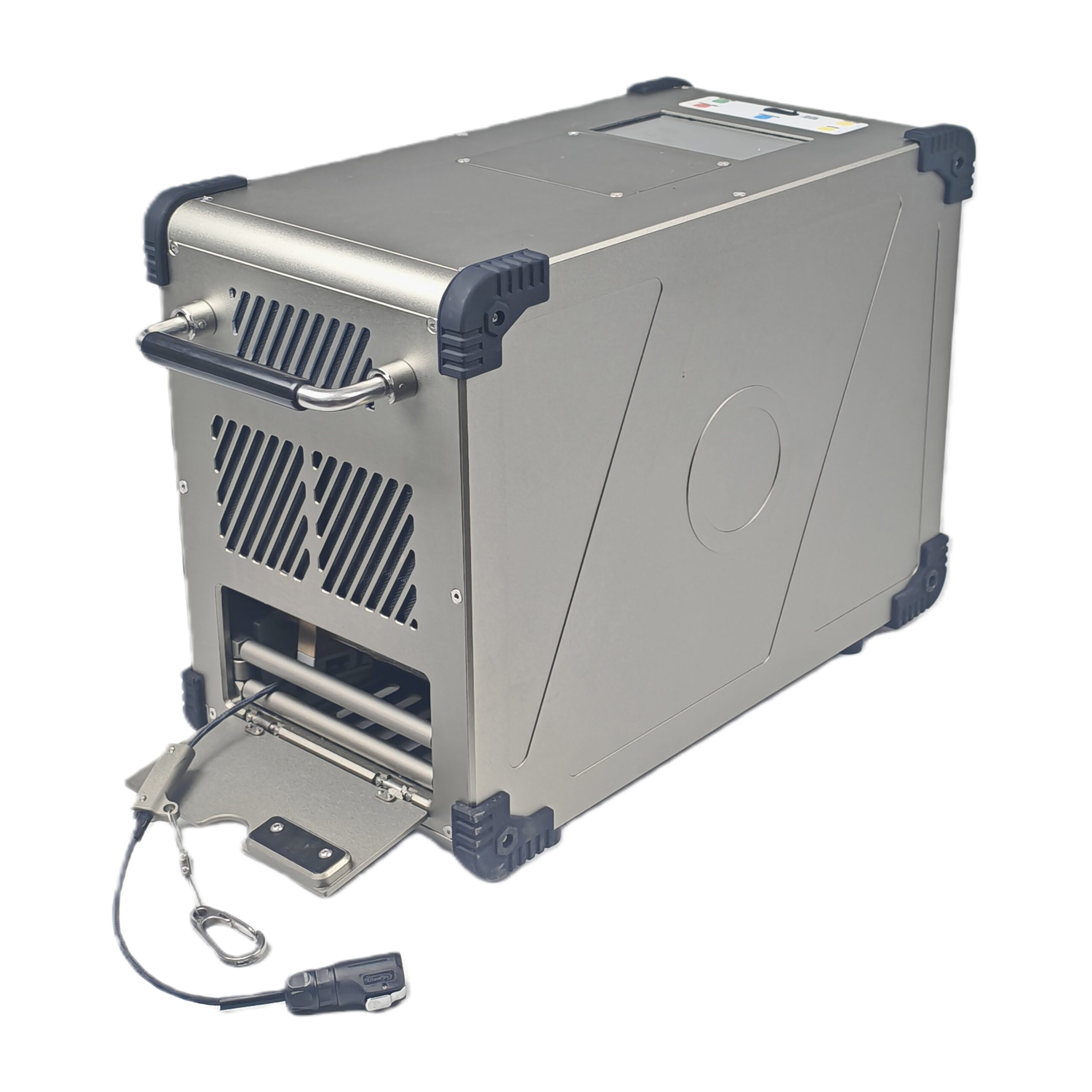

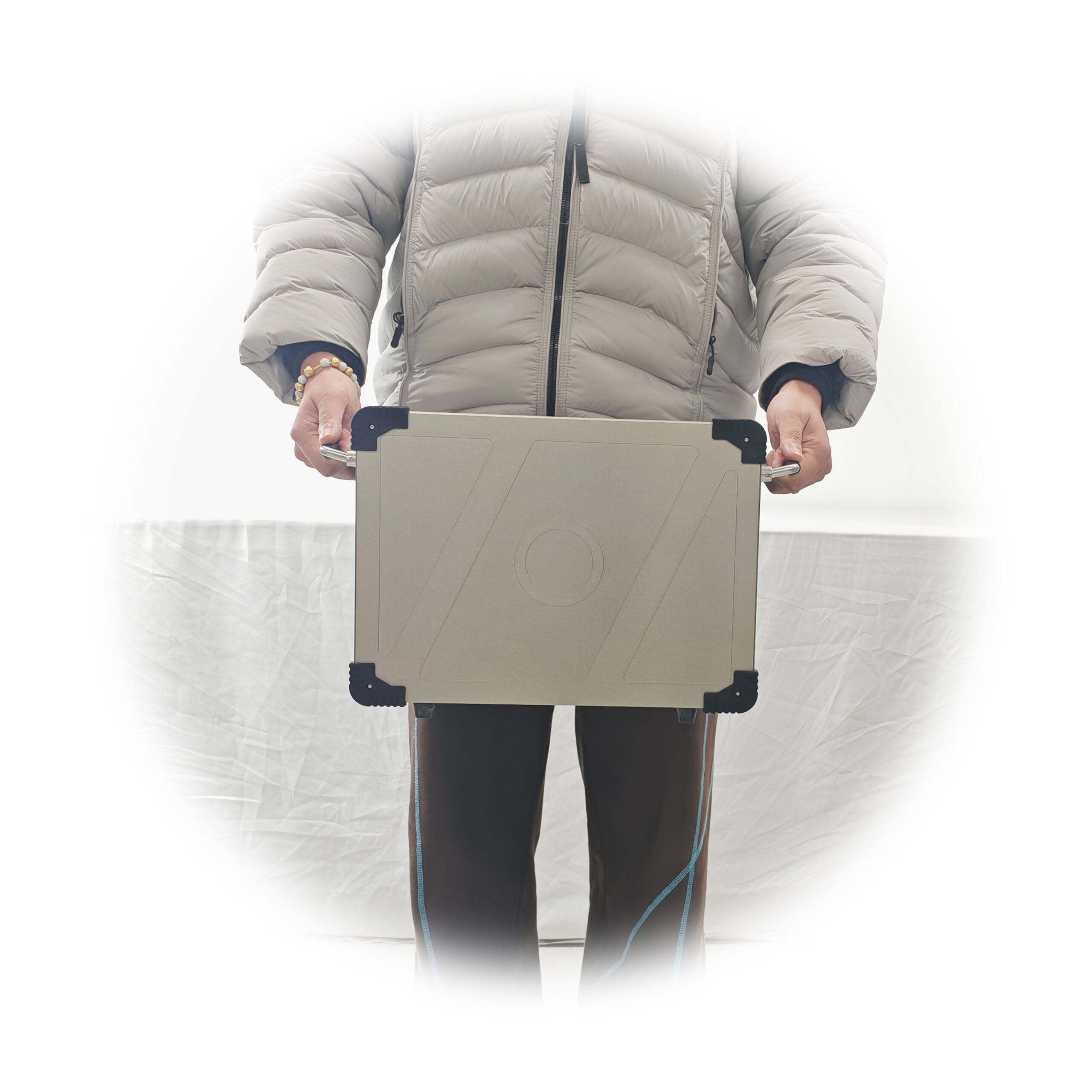

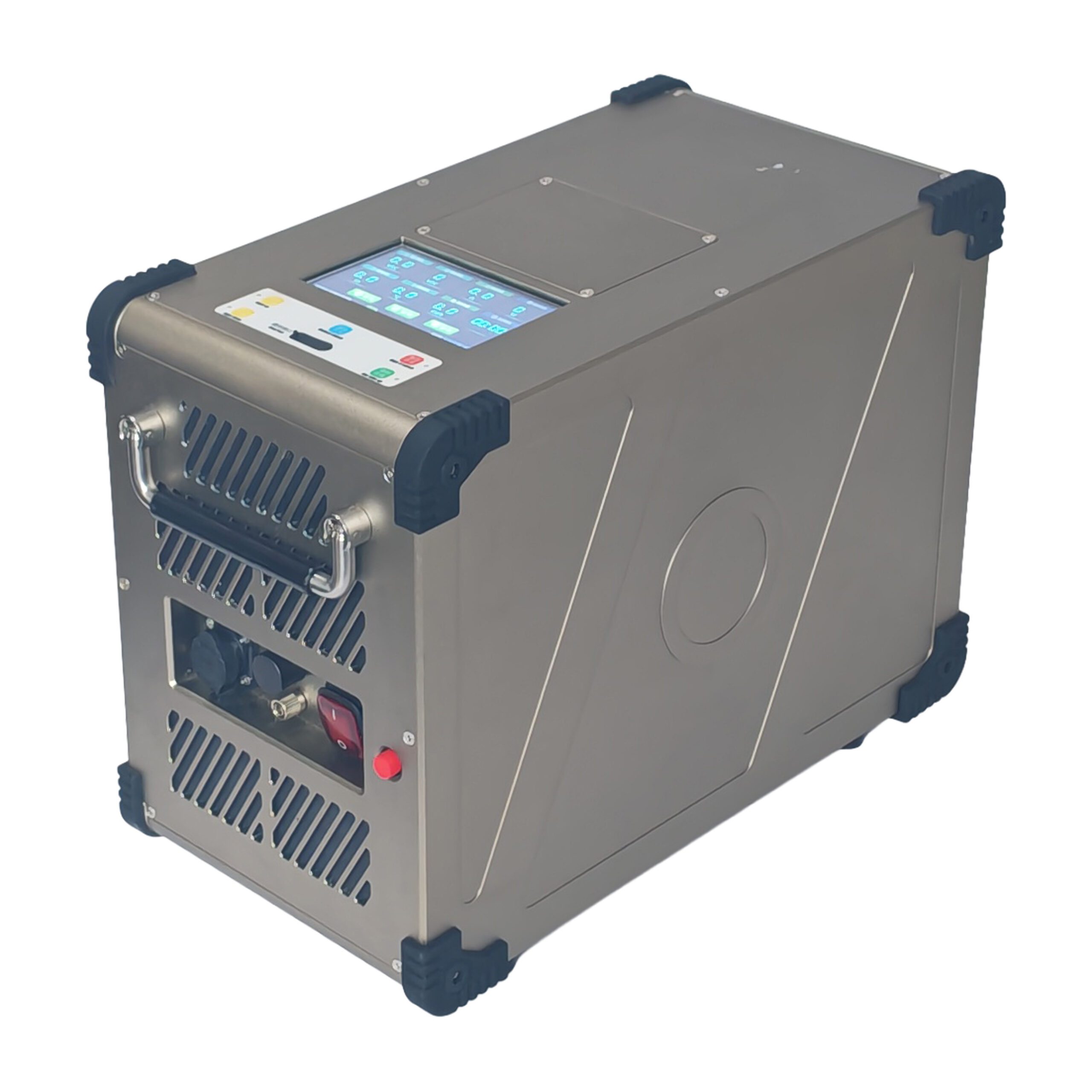

Tethered Box (Ground Module)

• Input Voltage: 190~240VAC, Single-phase 220VAC @ 50/60Hz

• Output Voltage: 600~850VDC (Factory default: 850VDC)

• Output Power: 3500W (Rated continuous output) | 4000W (Peak)

• Cable Length: 55m or 110m standard configuration (custom lengths available)

• Cable Reel Speed: 0~5 m/s (Intelligent dynamic continuous adjustment with variable acceleration control)

• Cable Tension / Pulling Force: 0~15N (Intelligent continuous adjustment of gear, torque output, and torque slope)

• Connectivity: Supports multi-terminal interconnection and intelligent display control (Optional Fiber Optic available)

• Telemetry / Data Display: Real-time voltage, current, temperature, power consumption, deployed cable length, operating time, etc.

• Control Modes: Push-button, Mobile App, HMI, and Drone Controller (supports telemetry display, settings, and control)

• Protection Functions: Overvoltage, overcurrent, overtemperature, and short-circuit protection

• Warning System: On-screen fault logs accompanied by an acoustic-optic alarm

• Cable Material: Silver-plated copper + Teflon insulation + Single-mode Fiber + Sheathing film + Kevlar braid

• Electrical & Optical Interfaces: LP16, LP12, Switch, Bluetooth antenna, Type-C, FC (Fiber Connector)

• Dimensions: D360 × W185 × H260 mm

• Weight: Box: 9.2 kg | Cable: 5.5 g/m or 8.5 g/m (Optional Floodlight available)

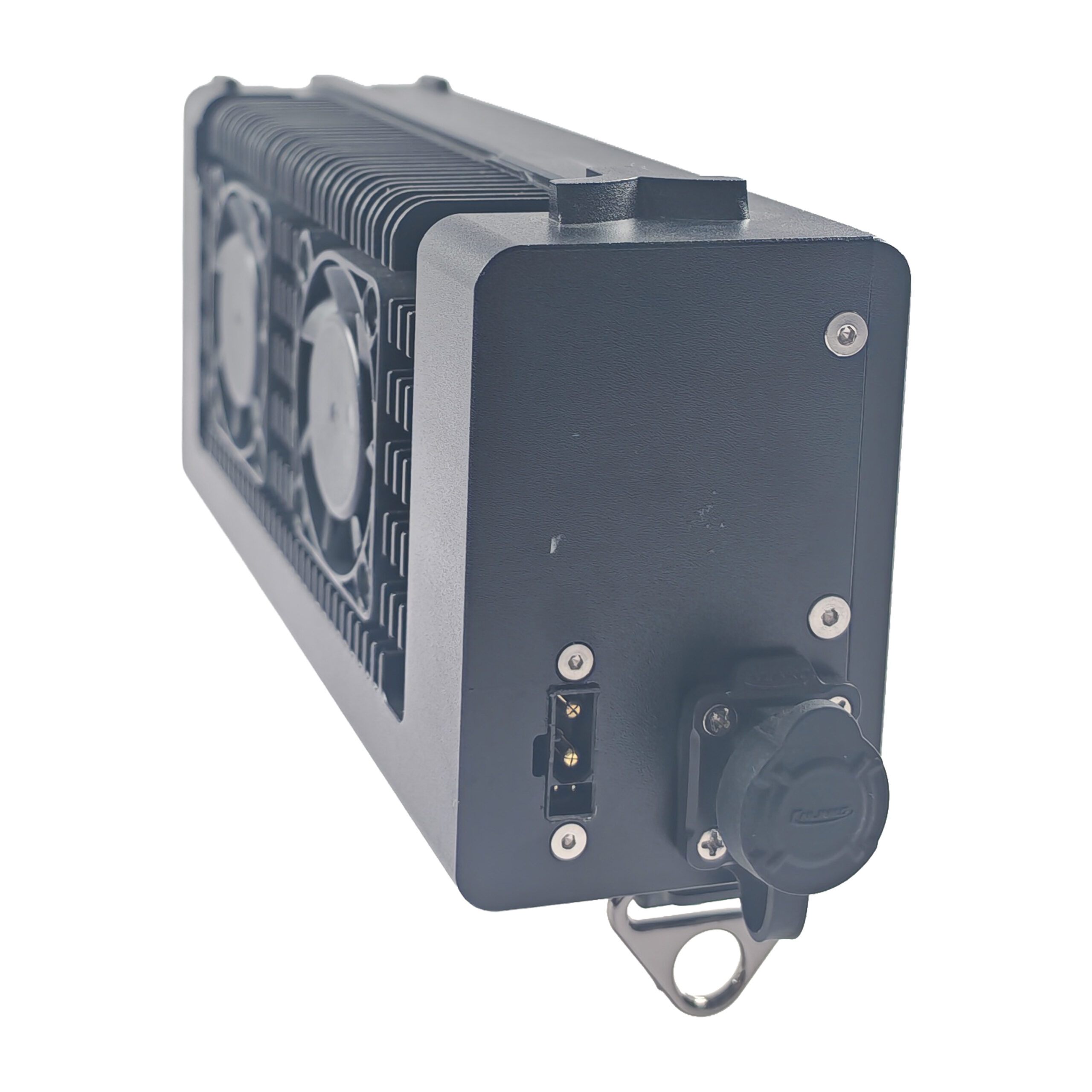

Aircraft-Mounted Power (Air Module)

• Input Voltage: 600~850VDC (Wide voltage range input)

• Output Voltage: 25.5VDC (Regulated stable voltage output)

• Output Power: 3000W (Rated continuous output) | 3500W (Peak)

• Installation: Direct plug-and-lock mechanism (replaces one stock drone battery)

• Electrical Interfaces: LP12, Floodlight interface, Battery interface

• Dimensions: 156 × 68 × 48 mm

• Weight: 560 g (designed to replace a 685 g OEM drone battery)
