General Specifications

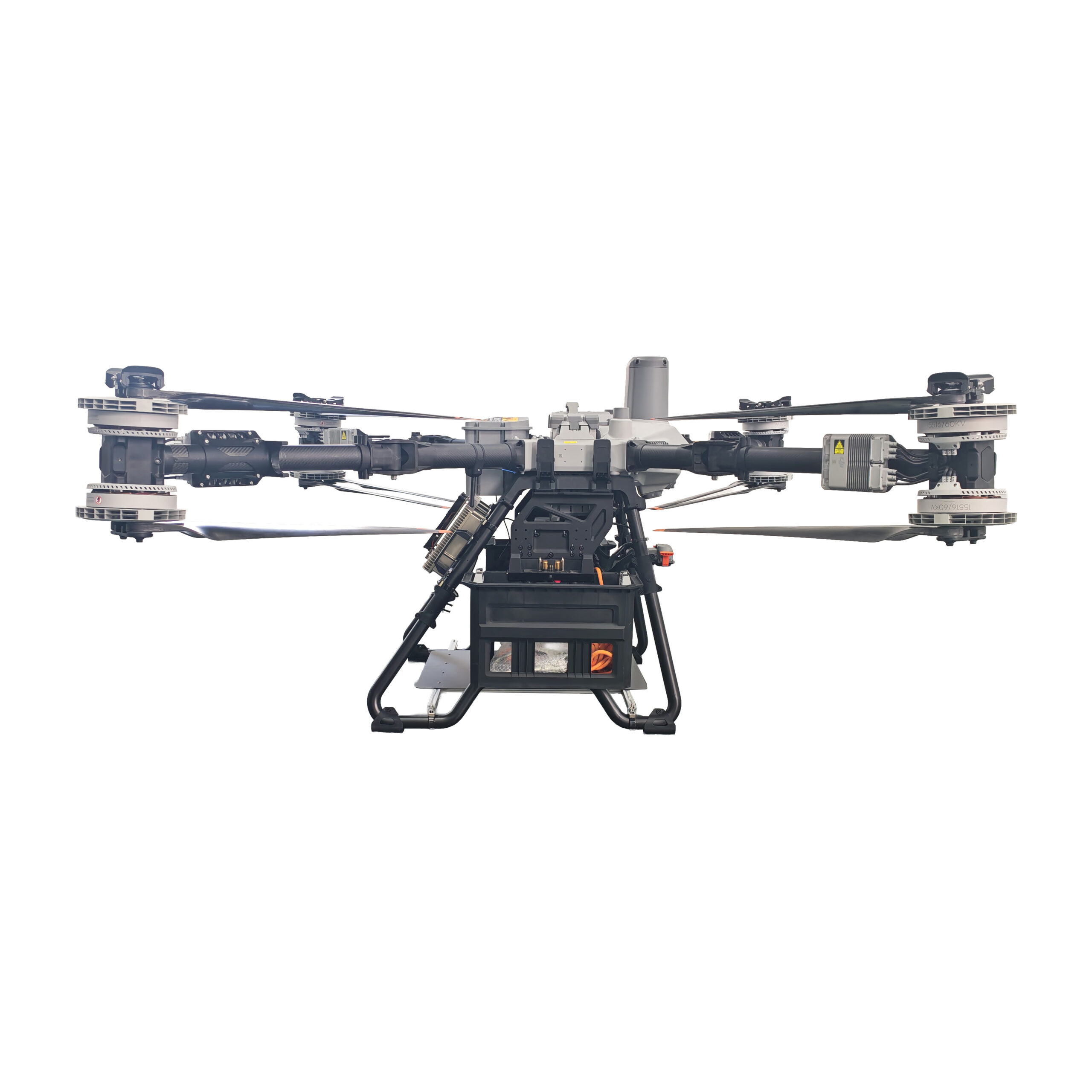

• Compatible Models: DJI FlyCart 100, DJI T70, DJI T100, DJI T100S

• Supported Flight Altitude: 100m, 200m, or 300m (with corresponding cable lengths of 110m, 220m, or 330m)

• Flight Endurance: >24h (Continuous power supply via generator)

• Safety Features:

  • Contactless operation for high-voltage hazard isolation

  • Dynamic cable synchronization (auto-retraction tracks drone ascent/descent)

  • Failsafe auto-recycling function remains active upon generator stalling

  • Automatic high-voltage shutdown in the event of cable breakage, short circuit, or detachment

• Environmental Ratings:

  • Operating Temperature: -20°C to 45°C | Storage Temperature: -40°C to 65°C

  • Ingress Protection (IP) Class: Air Module: IP54 | Ground Module: IPX4

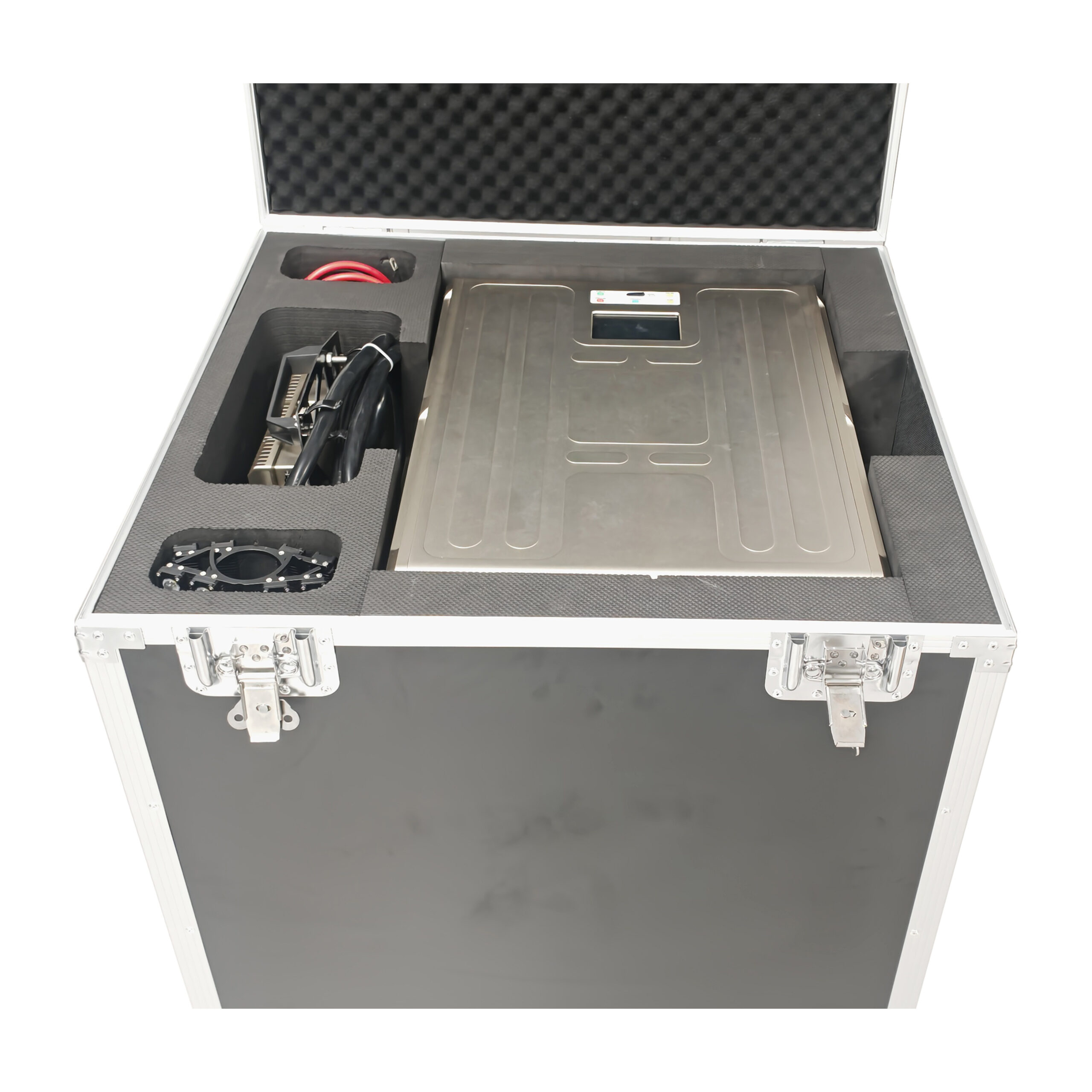

• Packaging:

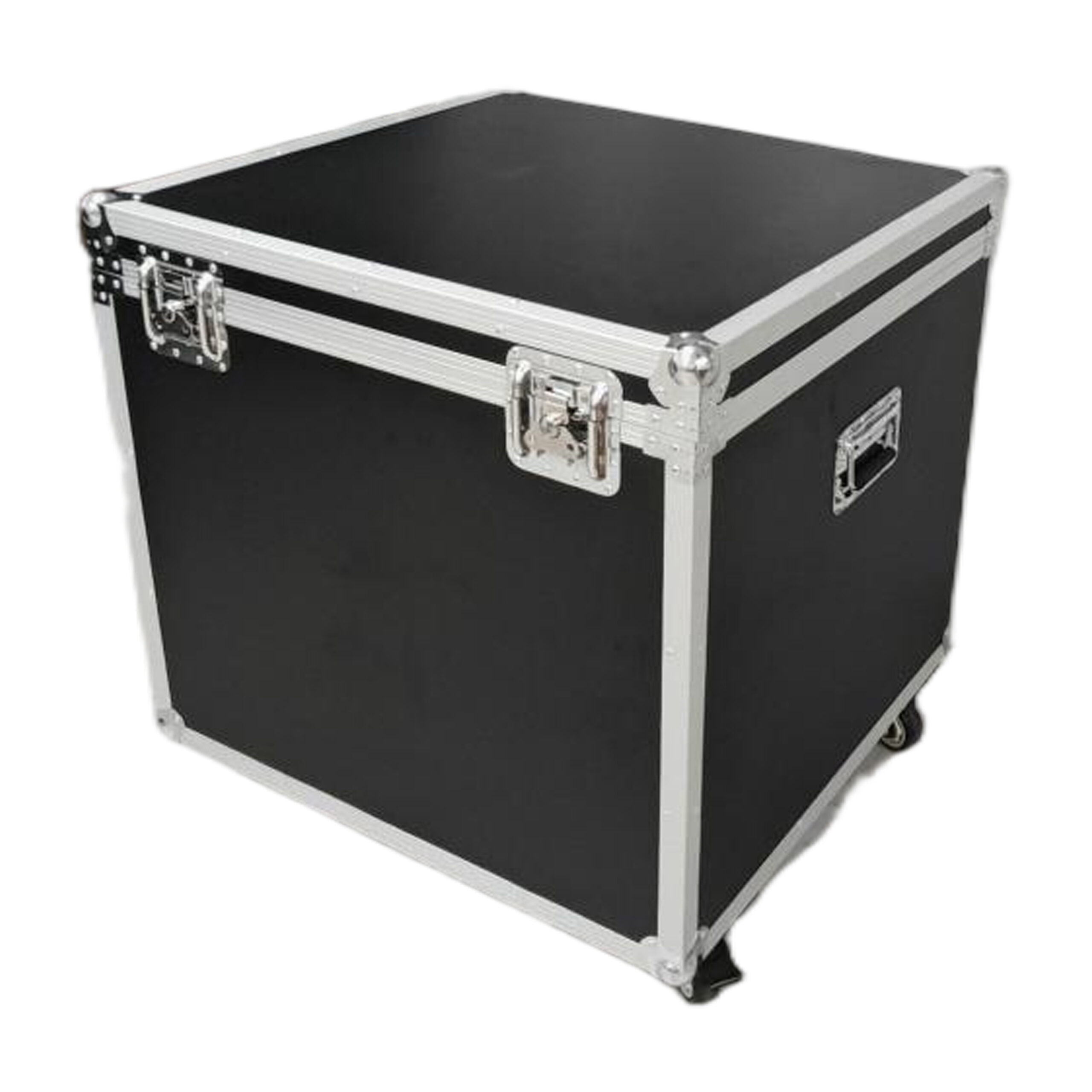

  • Industrial-grade trolley case (accommodates Ground Module, Air Module, and accessories)

  • Dimensions: D760 × W720 × H680 mm | Weight: 30 kg

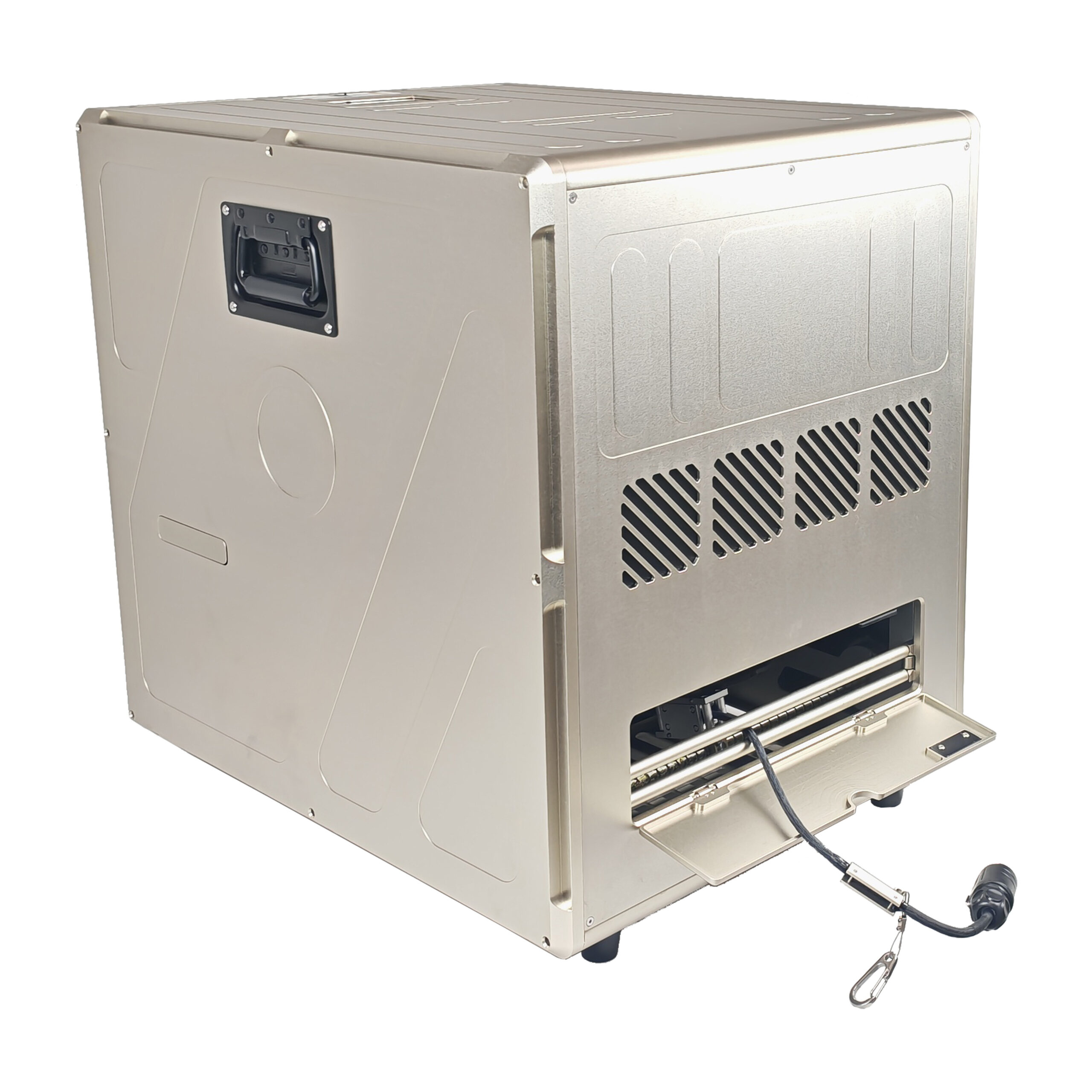

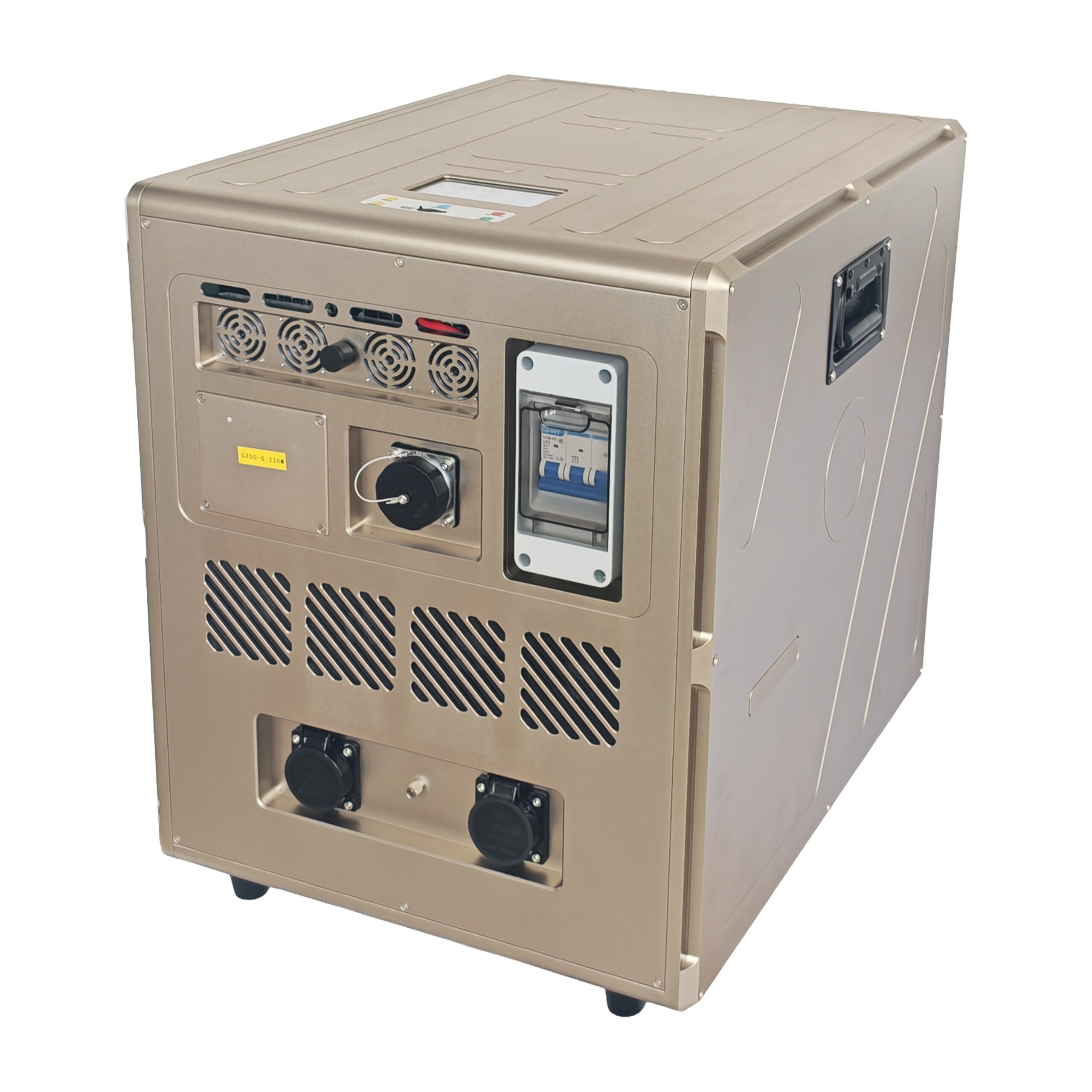

Tethered Box (Ground Module)

• Input Voltage: 380±10%VAC, Three-phase five-wire system @ 50Hz

• Output Voltage: 800~1000VDC (Factory default: 1000VDC)

• Output Power: 40kW (Rated continuous output) | 50kW (Peak)

• Cable Length: 110m, 220m, or 330m standard configuration (custom lengths available)

• Cable Reel Speed: 0~5 m/s (Intelligent dynamic continuous adjustment with variable acceleration control)

• Cable Tension / Pulling Force: 0~30N (Intelligent continuous adjustment of gear, torque output, and torque slope)

• Connectivity: Supports multi-terminal interconnection and intelligent display control (Optional Fiber Optic available)

• Telemetry / Data Display: Real-time voltage, current, temperature, power consumption, deployed cable length, operating time, etc.

• Control Modes: Push-button, Mobile App, HMI, and Drone Controller (supports telemetry display, settings, and control)

• Protection Functions: Overvoltage, overcurrent, overtemperature, and short-circuit protection

• Warning System: On-screen fault logs accompanied by an acoustic-optic alarm

• Cable Material: Silver-plated copper + Teflon insulation + Single-mode Fiber + Sheathing film + Kevlar braid

• Electrical & Optical Interfaces: Heavy-duty WS40, LP20, Switch, Bluetooth antenna, Type-C, FC (Fiber Connector)

• Dimensions: D560 × W440 × H520 mm

• Weight: Box: 46.8 kg | Cable: 44 g/m or 51.5 g/m (Optional Floodlight available)

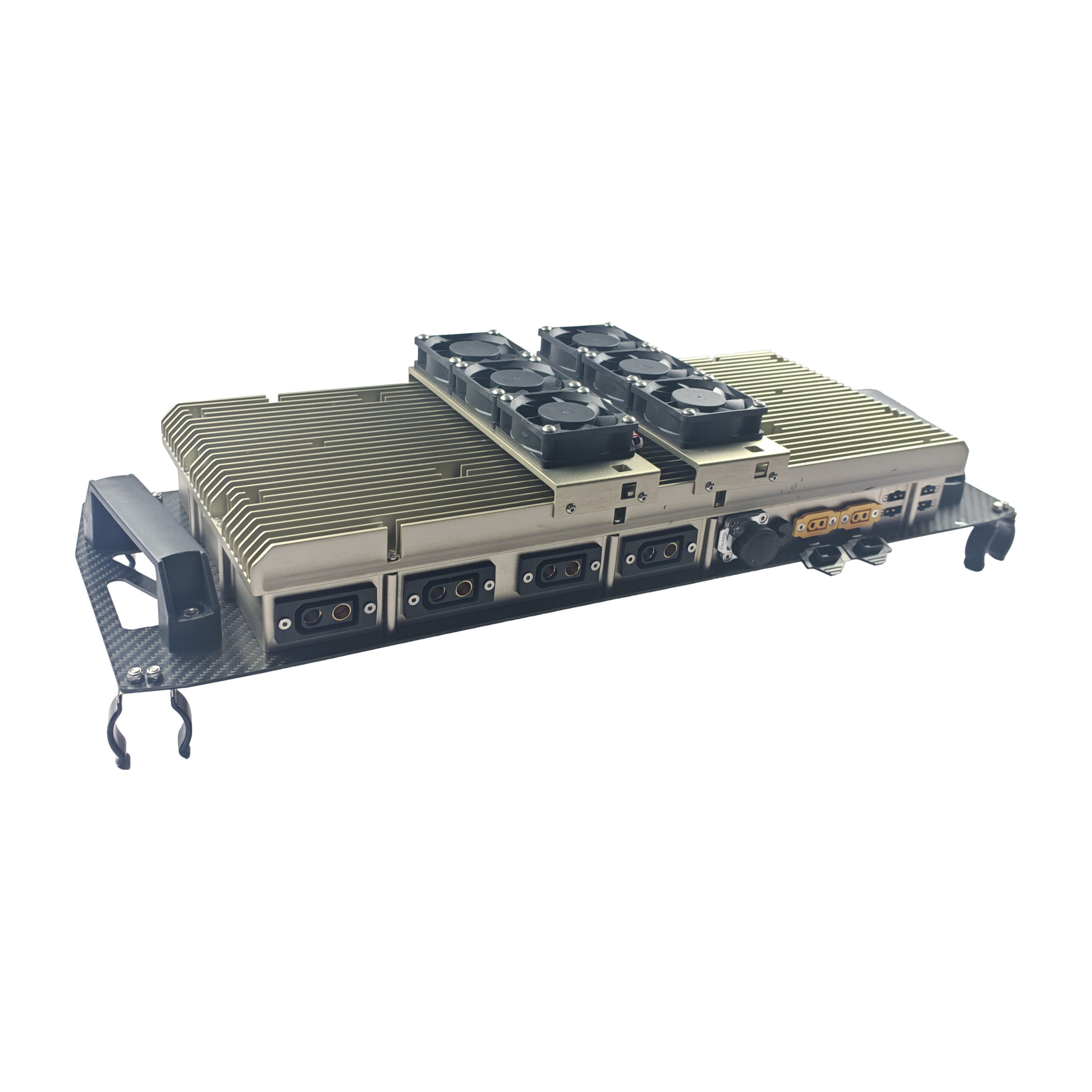

Aircraft-Mounted Power (Air Module)

• Input Voltage: 800~1000VDC (Wide voltage range input)

• Output Voltage: 59.5VDC (Regulated stable voltage output)

• Output Power: 30kW (Rated continuous output) | 36kW (Peak)

• Installation: Tool-free plug-in installation (Single battery mode)

• Electrical & Data Interfaces: LP20, Floodlight interface, Battery interface, Payload expansion interface

• Dimensions: 455 × 188 × 68 mm

• Weight: 7.4 kg (designed to replace a 14.7 kg OEM drone battery)
